Design Patterns

Posted by Tom Spencer on 2020-04-17

Welcome to the first in a new blogs series on Design Patterns, in which we'll look at some of the most helpful design patterns, their use and benefits, so that you can use them in your software design.

Design patterns are general, reusable solutions to commonly occurring problems in software designs. They aren’t a finished design that can directly be turned into code, rather they are a description or template you can use to solve a problem in many different contexts.

This means they can help speed up the development process by as they provide test, proven best practices that you can use, thereby improving code readability and avoiding problems down the line. They also enable the use of common names for software interactions between developers and can be improved over time, making them more robust than ad-hoc designs.

Design patterns don’t go directly into your code, they fi rst go into your BRAIN. Once you’ve loaded your brain with a good working knowledge of patterns, you can then start to apply them to your new designs, and rework your old code when you fi nd it’s degrading into an infl exible mess of jungle spaghetti code.

In this blog series we will cover the following design patterns:

  1. The Strategy Pattern - Defines a family of algorithms, encapsulates them and makes them interchangeable.
  2. Observer Pattern - A one-to-many dependency where a change in one object results in automatic notification and change in the other objects.
  3. Factory
  4. Singleton - Ensures a class has only a single instance and provides a global point of access to it.
  5. Command - Encapsulates a command request as an object.
  6. Adapter and facade - Converts the interface of a class into another interface, thereby matching interfaces of different classes.
  7. Iterator pattern - Provides a way to access the elements of a collection of objects sequentially without exposing its underlying representation.

The Strategy Pattern

Strategy pattern

The Strategy Pattern defines a family of algorithms, encapsulates each one, and makes them interchangeable. It enables the algorithm to vary independently from clients that use it. As such, it captures the abstraction in an interface and buries implementation details in derived classes.

Let's explore the Strategy Pattern by looking at an example of some bad code.

We have Animal.java and Dog.java and Bird.java:

public class Animal {

    private String name;
    private double height;
    private int weight;
    private String favFood;
    private double speed;
    private String sound;


Rather than use an interface in a traditional way, the Strategy Pattern allows us to use an instance variable that is a subclass of the Flys interface.

Class animal doesn't care what flyingType does, it just recognises that the functionality is available to its subclasses

This concept is known as Composition - instead of inheriting an ability through inheritance, we compose the class with Objects which contain the right ability. This then allows the capabilities of objects to be changed at run time.

public Flys flyingType;

    public void setName(String newName){ name = newName; }
    public String getName(){ return name; }

    public void setHeight(double newHeight){ height = newHeight; }
    public double getHeight(){ return height; }

    public void setWeight(int newWeight){
        if (newWeight > 0){
            weight = newWeight;
        } else {
            System.out.println("Weight must be bigger than 0");
        }
    }
    public double getWeight(){ return weight; }

    public void setFavFood(String newFavFood){ favFood = newFavFood; }
    public String getFavFood(){ return favFood; }

    public void setSpeed(double newSpeed){ speed = newSpeed; }
    public double getSpeed(){ return speed; }

    public void setSound(String newSound){ sound = newSound; }
    public String getSound(){ return sound; }

That's not the rght apporach. We don't want to add new methods to the super class. What we want is to separate what makes subclasses different from the the super class.

    public void fly(){

        System.out.println("I'm flying");

    }
    */

    // Animal pushes off the responsibility for flying to flyingType

    public String tryToFly(){

        return flyingType.fly();

    }

So, if we want you want to be able to change the flyingType dynamically we need to do it using the following approach:

    public void setFlyingAbility(Flys newFlyType){

        flyingType = newFlyType;

    }

}
public class Dog extends Animal{

    public void digHole(){

        System.out.println("Dug a hole");

    }

    public Dog(){

        super();

        setSound("Bark");

        // We set the Flys interface polymorphically
        // This sets the behavior as a non-flying Animal

        flyingType = new CantFly();

    }


This doesn't quite work either. We need ot make sure to abstract what is different to the subclasses. So we set a constructor to initialise all objects:

    *
    public void fly(){

        System.out.println("I can't fly");

    }
    */

}
public class Bird extends Animal{
public Bird(){

    super();

    setSound("Tweet");

We can then set the Flys interface polymorphically to set the behavior as a non-flying Animal:
    flyingType = new ItFlys();

}

}

So then, how do we make Bird.java fly? We need to find a method that continues to abstract out the classes. So we create a Flys interface:

public interface Flys { String fly();

}

// Class used if the Animal can fly

class ItFlys implements Flys{

public String fly() {

    return "Flying High";

}

}

//Class used if the Animal can't fly

class CantFly implements Flys{

public String fly() {

    return "I can't fly";

}

}

This interface can be implemented by other subclasses which allow for different types of flying without effecting the animal or Flys. Classes which use the new Flys interface subclasses also enable other classes to use the code which stops duplication.

This interface is then used inside of Animal as an instance variable, thus allowing different types of flying. We encapsulate the behaviour that changes.

We can then get and set the flying type dynamically:

// Animal pushes off the responsibility for flying to flyingType public String tryToFly(){ return flyingType.fly(); } // If you want to be able to change the flyingType dynamically // add the following method public void setFlyingAbility(Flys newFlyType){ flyingType = newFlyType; }

We can now write Dog flyingType = new CantFly():
public Dog(){

    super();

    setSound("Bark");

    // We set the Flys interface polymorphically
    // This sets the behavior as a non-flying Animal

    flyingType = new CantFly();

}
So, to separate Dog and Bird instances in the Animal main section and check whether each animal can fly or not, we refer to the Flys interface and then set it to not fly type.

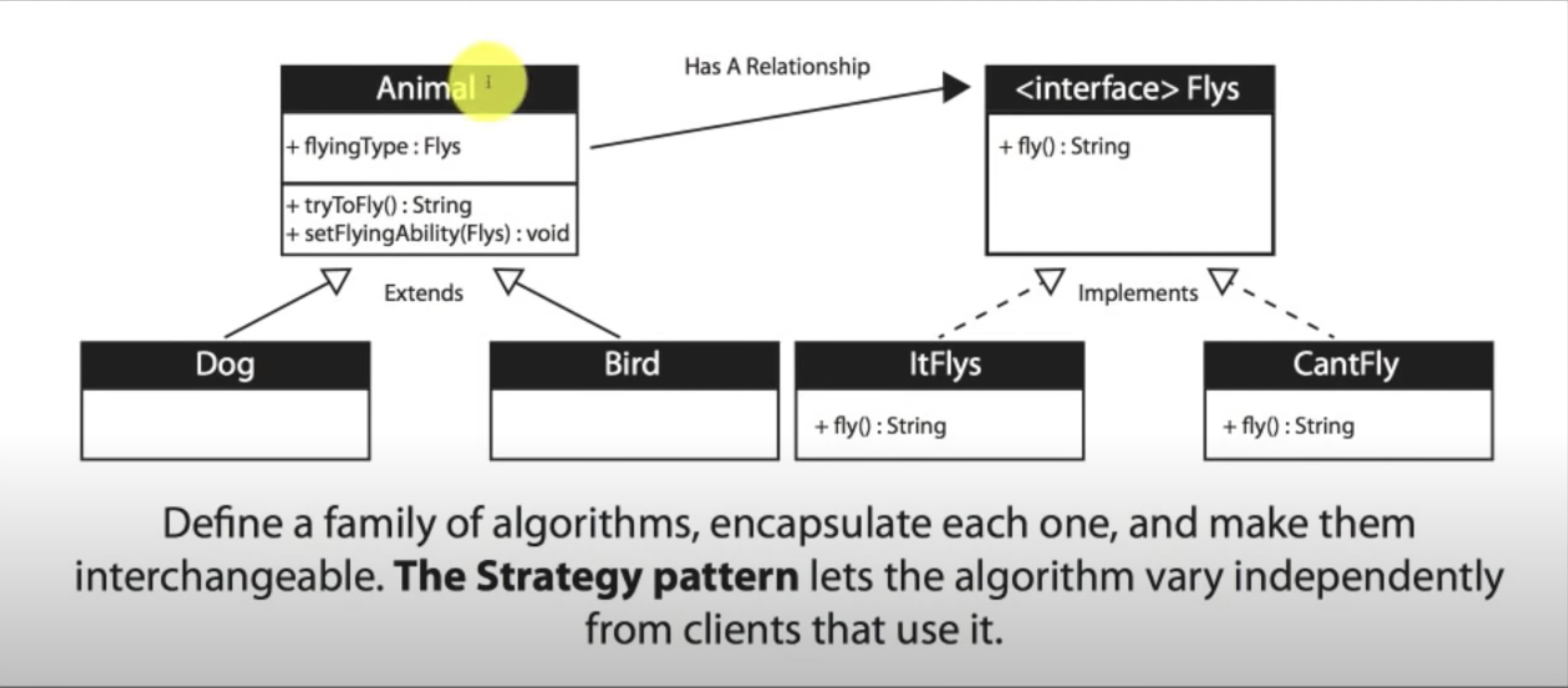

The classes look like the following:
![image](https://user-images.githubusercontent.com/27693622/79696800-bb660a80-8276-11ea-83d2-e0ca83836c89.png)

<img width="1069" alt="Screenshot 2020-04-19 at 19 51 21" src="https://user-images.githubusercontent.com/27693622/79696882-3c250680-8277-11ea-996a-42e7890f2bba.png">


<img width="1062" alt="Screenshot 2020-04-19 at 19 51 49" src="https://user-images.githubusercontent.com/27693622/79696891-4b0bb900-8277-11ea-9577-c587af91653c.png">


As we can see, Strategy lets the algorithm vary independently from the clients that use it. We can use it to encapsulate behavior has into a different set of classes that can be easily expanded and changed, in needed during runtime. It provided a flexible alternative to
subclassing; meaning you can change the behavior of a class by composing a different object with.

Our next blog will look at the **Observer Pattern**, which defines one-to-many dependency where a change in one object results in automatic notification and change in the other objects.
